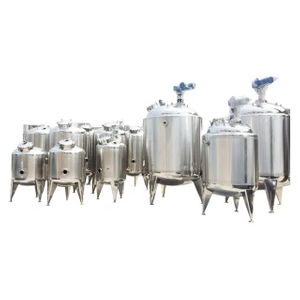

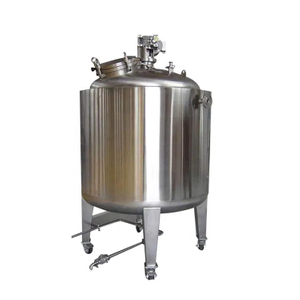

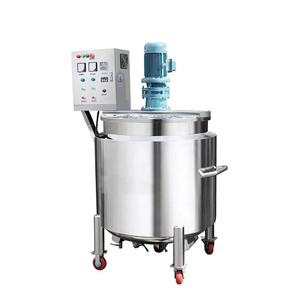

Stainless Steel Reactor Tank Detailed Page
Industrial Stainless Steel Reactor Vessel Design
Product Introduction
Stainless steel reactor tanks are essential equipment in industries such as pharmaceuticals, chemicals, food and beverage, and biotechnology. These tanks facilitate various chemical reactions, mixing, and processing under controlled conditions. Designed to withstand high pressures and temperatures, they offer superior corrosion resistance, durability, and ease of maintenance, making them ideal for maintaining a sanitary and efficient processing environment.
Material: 304/316L Stainless Steel
Capacity: Customizable according to customer requirements
Surface Treatment: Polishing or sandblasting
Structure: Single-layer, double-layer, or multi-layer with insulation
Heating and Cooling System: Options for steam heating, electric heating, thermal oil heating, or cooling jackets
Agitator: Various types including anchor, paddle, propeller, or turbine
Pharmaceutical Production
Chemical Processing
Food and Beverage Processing
Cosmetic Manufacturing
Biotechnology
Parameter | Description |
---|---|
Material | SUS304 / SUS316L |
Capacity | 100L - 20000L |
Thickness | 2mm - 10mm |
Tank Diameter | 500mm - 4000mm |
Tank Height | Customizable according to customer requirements |
Design Pressure | Atmospheric to 10 MPa (100 bar) |
Working Temperature | -20℃ - 300℃ |
Surface Treatment | Inner and outer mirror polishing, matte, or sandblasting |
Heating Method | Steam, electric, thermal oil, or cooling jackets |
Agitator Type | Anchor, paddle, propeller, turbine, or customized |
Mixing Speed | Variable speed options available |
Accessories | Thermometer, pressure gauge, level gauge, manhole, CIP cleaning spray ball, sampling valve, etc. |
Determine Capacity: Select the appropriate tank capacity based on specific production needs.
Choose Material: Select 304 or 316L stainless steel based on the properties of the materials being processed.
Design Pressure: Specify the working pressure requirements if pressure resistance is needed.
Heating and Cooling Requirements: Choose the appropriate heating or cooling method (steam, electric, thermal oil, or cooling jackets) based on the process requirements.
Agitator Type: Select the suitable agitator type (anchor, paddle, propeller, or turbine) based on the viscosity and nature of the materials being mixed.
Special Requirements: If additional features like insulation, specific control systems, or extra accessories are needed, specify these in advance.
Accessory Selection: Choose necessary accessories such as thermometers, pressure gauges, and CIP systems based on specific usage requirements.
Q: What types of processes can stainless steel reactor tanks handle?A: They can handle a wide range of processes including chemical reactions, mixing, heating, cooling, and more.
Q: How do I clean and maintain the reactor tank?A: Our tanks are designed for easy cleaning and maintenance, with options for CIP (Clean-In-Place) systems or manual cleaning.
Q: Can the tanks be customized?A: Yes, we offer customization in terms of size, configuration, and material to meet specific process requirements.
