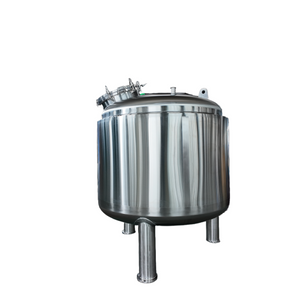

Stainless steel fermenter
Stainless steel fermentation tanks are essential equipment in the brewing and winemaking industries. Designed to provide optimal conditions for fermentation, these tanks ensure the production of high-quality beer, wine, and other fermented beverages. Their superior corrosion resistance, durability, and ease of cleaning make them ideal for maintaining a sanitary processing environment.
Material: 304/316L Stainless Steel
Capacity: Customizable according to customer requirements
Surface Treatment: Polishing or sandblasting
Structure: Single-layer, double-layer, or multi-layer with insulation
Cooling System: Cooling jackets for precise temperature control
Agitator: Optional, depending on the specific fermentation process
Beer Brewing
Wine Fermentation
Cider Production
Kombucha Brewing
Distillery Fermentation
Parameter | Description |
---|---|
Material | SUS304 / SUS316L |
Capacity | 100L - 20000L |
Thickness | 2mm - 10mm |
Tank Diameter | 500mm - 4000mm |
Tank Height | Customizable according to customer requirements |
Design Pressure | Atmospheric to 0.3 MPa (3 bar) |
Working Temperature | -5℃ - 100℃ |
Surface Treatment | Inner and outer mirror polishing, matte, or sandblasting |
Cooling Method | Dimple jacket, glycol cooling system, or internal coils |
Agitator Type | Optional, based on process needs |
Fermentation Efficiency | High-efficiency fermentation with precise control |
Accessories | Thermometer, pressure gauge, level gauge, sample valve, CIP cleaning spray ball, manhole, etc. |
Determine Capacity: Select the appropriate tank capacity based on specific production needs.
Choose Material: Select 304 or 316L stainless steel based on the properties of the materials being fermented.
Design Pressure: Specify the working pressure requirements if pressure resistance is needed.
Cooling Requirements: Choose the appropriate cooling method (dimple jacket, glycol cooling system, or internal coils) based on the fermentation process requirements.
Agitator Requirement: Determine if an agitator is necessary for the fermentation process.
Special Requirements: If additional features like insulation, specific control systems, or extra accessories are needed, specify these in advance.
Accessory Selection: Choose necessary accessories such as thermometers, pressure gauges, and CIP systems based on specific usage requirements.
Q: What types of beverages can stainless steel fermentation tanks handle?A: They can handle a wide range of fermented beverages including beer, wine, cider, kombucha, and spirits.
Q: How do I clean and maintain the fermentation tank?A: Our tanks are designed for easy cleaning and maintenance, with options for CIP (Clean-In-Place) systems or manual cleaning.
Q: Can the tanks be customized?A: Yes, we offer customization in terms of size, configuration, and material to meet specific process requirements.
For more information or custom services, please contact us at:
Phone: +86-17689231952
Email: zhengjianbin@fujianyiyi.com
WhatsApp: +86-18350317904
